Heat shields for wood burning stoves and distance to combustibles

From The Stovefitter's Manual by Julian Patrick

Shielding your wood burning stove so as to protect combustible materials

It’s worth following the rules and regulations when it comes to wood burning and multifuel stoves. If you have not used or owned a stove before you might not be aware quite how hot the stove and the flue pipe can get. In normal operation a flue pipe will be at 150 to 250 degrees centigrade but can go a lot higher. If deposits attached to the inside of a flue catch fire then a flue pipe can even glow red (worst case scenario and extremely rare). Building regulations must sensibly cover all eventualities (including a pipe glowing red hot) to protect property and life. The floor underneath a stove or in front of the glass can get much too hot to touch and a suitable hearth is imperative.

A “combustible material” is any material that is not A1 fire-rated or to as high a specification as this (your sofa and that wooden beam are definitely combustible materials!). Plasterboard is officially a combustible material. Materials such as “pink plasterboard” might have increased levels of fire resistance but this does not make them A1 fire-rated (e.g. pink plasterboard might be rated as holding back fire for “x” minutes but this is not the same as A1 fire-rated). A1 fire-rated means that it will not catch fire, full stop, and it will not fall apart in a fire. You are safe with brick, stone and plaster as these are NON-combustible materials.

Stud walls might have wooden battens behind the plasterboard and in this instance normal Building Regulations for combustible rules should be followed (just because the battens cannot be seen does not mean they are safe).

Grey areas?

At the end of the day “who is inspecting/signing off the job?” is the real question and it is these people that need to be kept happy. If in doubt err on the side of belt n braces caution.

TOP ADVICE: To make your job very easy just ensure there are no combustible materials anywhere near your stove.

Further down this page look at the rules for the following:

  1. the stove
  2. the vitreous pipe
  3. twin wall (insulated) flue

Want to build your own chimney breast or fire surround? Google "building fireplace surround Promafour"

Wood burning stove rules

front view of stove with heat shieldYour stove must be a minimum distance away from combustible materials. This distance will be specified by the stove manufacturer in their installation instructions (contact them if stove not yet purchased). The distances will often be 40cm or more (if you have an inglenook with any combustibles present then it better be a large one). Remember this is to combustible materials.

Can you shield the combustibles from the stove and reduce the specified distance? Yes you can.

If the stove does not exceed a nominal heat output of 7kW then yes (https://www.hetas.co.uk/bs8303-standard-update/)

Some caveats with heat shields

If the following caveats are met then clearance to closest combustibles can be reduced to 95mm between stove and heat shield (see diagrams).

  • Stove must be under 7kW nominal
  • Shield must be a min 1.5mm thickness galvanised steel (can be painted afterwards to match wall) and affixed with non combustible fittings (e.g. Thunderbolts with copper plumbing pipe cut for spacers)
  • Shield shall be open top and bottom to allow flow of air
  • The shield must extend at least to the hearth edges and at least 300mm above the top surface of the appliance
  • There shall be no protrusions above the shield to prevent air flowing behind the shield

Don't want to bother with a heat-shield?

The 4kW Saltfire Scout has a supplied rear heat-shield and this ensures a very low distance to combustibles at the rear of the stove of just (100mm) 4").

at shield and stove
Heat shield wood burner

Hetas's diagram (for comparison with the above) is here.

For a very good but expensive shield see Vlaze at foot of this article.

Note that some stoves can be fitted with a heat shield direct onto the stove (provided by the stove manufacturers). The DG Ivar 5 stove has a distance to combustibles at the rear of 400mm but fit their heat shield directly to the rear of their stove and this is reduced to 150mm. The Ekol Applepie also has an optional purpose built enclosure.

Stoves and non-combustible materials: read the manual

What appears to be a complete mystery when it comes to Building regs, most installation guides and stove manuals is minimum VERTICAL distances to combustible materials (usually a wooden beam or lintel).

BS1251 says

3.1.4 – Wooden Mantels

“Where a fireplace consists of a marble, stone or ceramic back panel and hearth together with a wooden mantelpiece. There shall be a clearance to combustible material of 300 mm above the fire opening and 150 mm either side of the fire opening to the start of the wooden mantel. Extra clearance may be needed when the fireplace is constructed for certain types of appliance”

This advice therefore should be followed as ‘good practice’ in lieu of no other directive.

Steel flue pipe (vitreous pipe, usually black) rules

Steel flue pipe (often called vitreous pipe) is the pipe that comes out of the top of the top or rear of the majority of stoves.

Flue pipes GET EXTREMELY HOT and should be located as to avoid igniting combustible materials. See clause 2.15 and diagram 19 of ADJ (Document J of the Building Regulations).flue pipe distance to combustibles diagram

The key rule for all flue pipe is that:

Any combustible material must be three times “X” away from the flue pipe where X = the diameter of the flue pipe.

This means that your 5″ flue pipe should be 15″ away from combustibles and your 6″ flue pipe should be 18″ away from combustibles in any direction.

This distance can be halved if you shield the combustible material.

The shield must, of course, be non-combustible (do not use plasterboard as it is not A1 fire-rated and may gradually crumble).

There must also be an air gap between the shield and the combustible material of a minimum of 12mm (other wise the combustible material soon ends up the same temp as the shield).


The air gap is very important – just sticking the shield to the combustible material does not work as the heat just passes through the shield. Air is an excellent insulator.

Vitreous and non-combustible materials: close as you like.

Shielding of steel flue pipe (vitreous pipe)

As already mentioned it is possible to shield a combustible material e.g.a wooden beam from the heat from a steel stove pipe.

As can be seen from the regulations outlined above shielding can reduce the minimum allowed distance between pipe and material to 1.5 X diameter rather than 3 X diameter (5″ pipe when shielded can be 7.5″ away and 6″ pipe can be 9″ away). As a fitter I have one problem with this… I correct myself… the customer usually has one problem with this. As can be seen from the diagram (fig.1) below, in order to be effective the shield always has to drop below the wooden beam. This means the shield can be seen from the room, especially when sitting on the sofa. The amount that is usually showing is 2 to 5″. I usually have to inform customers that they have no choice in the matter.

In the the second diagram (fig.2) the long orange arrow (distance from flue to wood) must be a minimum 15″ (5″ diameter flue) or 18″ (6″ diameter flue). The short red arrows show an area where the gap should be half of this (7.5″ or 9″). The gap between shield and combustible material must be 12mm minimum (BEST PRACTICE 25MM).

In the example below, if the steel flue is 5″, then the two long orange arrows should be 15″ or more whilst the short red arrows should be 7.5″ or more.


Air gap diagram profile


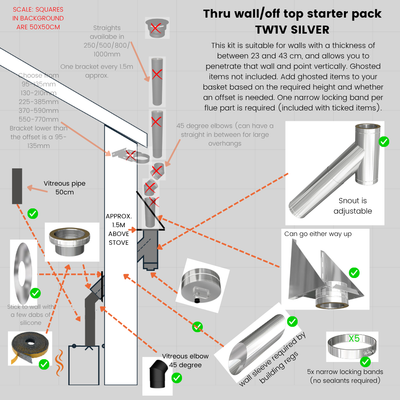

Twin wall flue pipe rules (clip-together chimney systems)

Twin wall flue pipe has a diameter of approx. 2″ more than steel stove pipe due to it being insulated (so a 6″ diameter vitreous would be an 8″ exterior twin wall). It is usually used to pass through ceilings and lofts or run outside of buildings (it is often stainless steel but is also available in black).

Wood burning stove shield wood lintelNote that when you purchase twin wall pipe it is the interior size you specify (so our 6" twin wall is 6" inside).

Twin Wall flue, because it is insulated, only has to be a minimum Xcm from combustibles. “X” is usually 5cm, 6cm or 7cm depending on supplier so please check (it might be 5cm in open air and 8cm if “boxed in”). Duraflue Easy Fit should be 7cm from combustibles if boxed in but can be 5cm if in open air. Twin Wall Flue is used to build complete chimney systems where no chimney is present but is also used in place of the usual vitreous steel stove pipe in areas where a combustible material is close by and is often used in place of steel in order to protect wooden beams or surrounds.

In order to bypass a wooden beam one requires, from the bottom up: short length steel vitreous pipe (usually 25cm length), vitreous to twin wall adaptor, length of twin wall (usually a metre or a metre and a half), twin wall to flue liner adaptor, chimney liner. One can choose to go straight to the stove with the twin wall and one would then just omit the short length of vitreous pipe.

Note that joints in twin wall are, according to regs, supposed to be able to be inspected and a suitable inspection hatch fitted (30cm x 30cm minimum). One way of achieving this is to make your closure register plate removable in some form (even if removing it is a pain at least you have complied).

Twin wall and non-combustible materials: close as you like.

Wood beam and wood burning stove
DG ivar 8

Heatshields for wood stoves

Vlaze heat shield wood stovePlasterboard walls are classed as combustible in Building Regulations and very often cause problems when striving to follow the rules AND YOU WILL LIKELY REQUIRE A HEAT SHIELD AS ALREADY DISCUSSED.

A company called Vlaze launched “aesthetically lovely” heat shields (see pic below). “VLAZE wall mounted heat shields are designed to be hung behind a wood burning stove creating a focal point that not only enhances the fireplace but allows the stove to be placed close to the wall behind. When installed the shield reduces the stoves distance to a combustible material by half and in the case of Charnwood appliances down to just 100mm”.

Vlaze panels are however very heavy and expensive (£300-£500). One might agree that they are somewhat over-engineered. If you are prepared to put the funds and effort into Vlaze – they are rather lovely.

You can make your own heatshield from steel or Hardiebacker board (Google it). Just use metal tubing as spacers (e.g. copper pipe or even a stack of nuts or washers will do). Then paint the shield same colour as the wall with standard water based emulsion(or some spray it with black stove-spray or bbq paint).
To find stoves that come with a built in heatshield use our menu to view all our stoves and from the left hand filter menu choose "Rear Heatshield Possible".
