Dik Guerts DG Modivar 5 Wood Burning Stove 45x56cm

Model

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
DEFRA Approved Logo

DEFRA Approved

This stove can burn wood in a Smoke Control Area (most towns and cities are Smoke Control Areas).

DEFRA Approved

This stove can burn wood in a Smoke Control Area (most towns and cities are Smoke Control Areas)

Eco Design 2022

Eco Design 2022

This stove is certified as Ecodesign compliant (has passed the new and stringent 2022 regulations).

Ecodesign & myths about pollution

Eco Design 2022

This stove is certified as Ecodesign compliant (has passed the new and stringent 2022 regulations)

Ecodesign & myths about pollution

Heat Output

MATERIAL & Output

Material: Steel with a cast-iron door

Output: 5kW
(max approx: 6kW)

Material & Output

Material: Steel with a steel-iron door

Output: 5kW
(max approx: 6kW)

Stove Dimensions

DImensions

Body
Width: 450mm
Height: 557mm
Depth: 368mm

Flue
5" (125mm)

Dimensions

Body
Width: 450mm
Height: 557mm
Depth: 368mm

Flue
5" (125mm)

Key selling points

KEY SELLING POINTS

A Stovefitters favourite
Premium Product
Single air control
Created in Holland



Key Selling Points

Modular
Premium Product
Excellent air control
Created in Holland

Stovefitters' opinion

Julian's Thoughts

At the time of writing I have yet to put the Modivar through its paces. Knowing DG's design and testing processes I am sure this will perform beautifully. Testing and review coming soon...

Julian's Thoughts

At the time of writing I have yet to put the Modivar through its paces. Knowing DG's design and testing processes I am sure this will perform beautifully. Testing and review coming soon...

Description

About the DG Modivar 5

Dik Geurts  Floating Plateau

Following the stunning success of the Ivar, Dik Geurts recently launched the Modivar. This contemporary design is available as a freestanding stove but also has a choice of stores and stands.

The Modivar, a wood-only stove, has an array of options: rear heat shield, external air kit and screw-in feet for when the stove is not sited on a store or plinth.

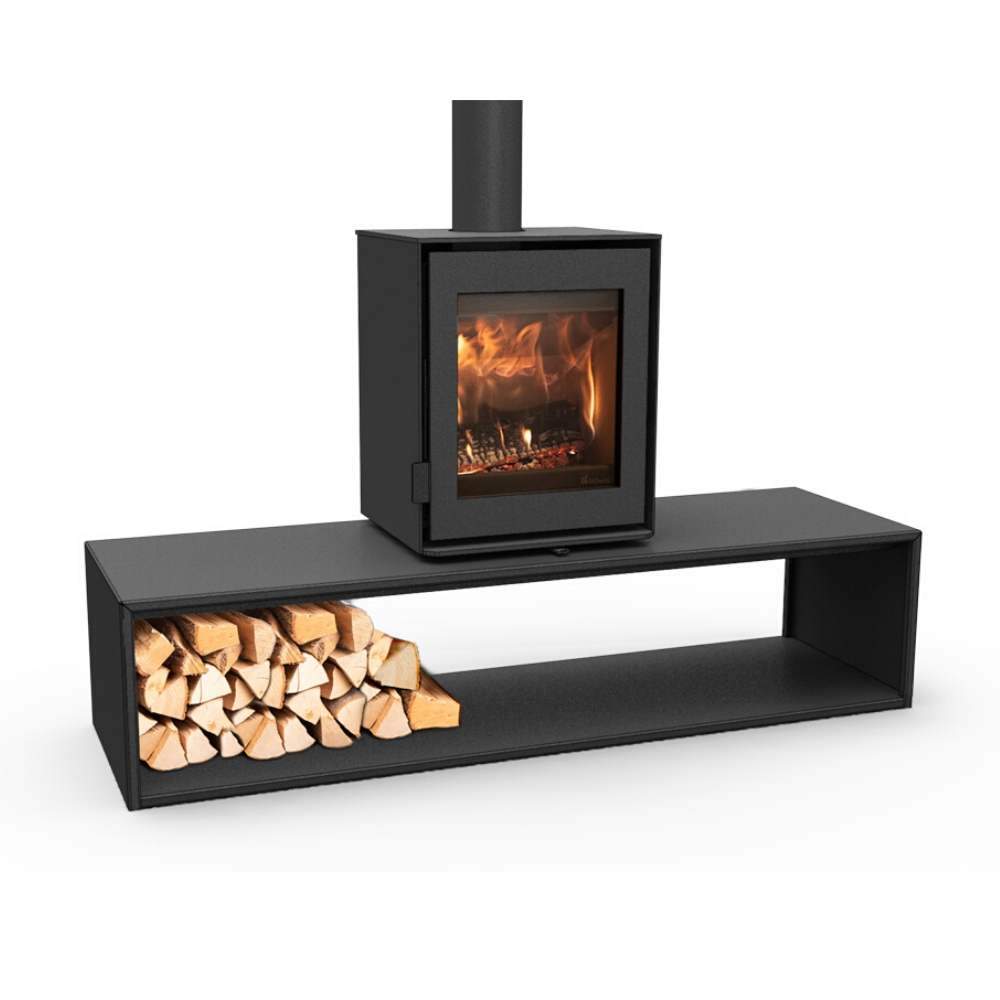

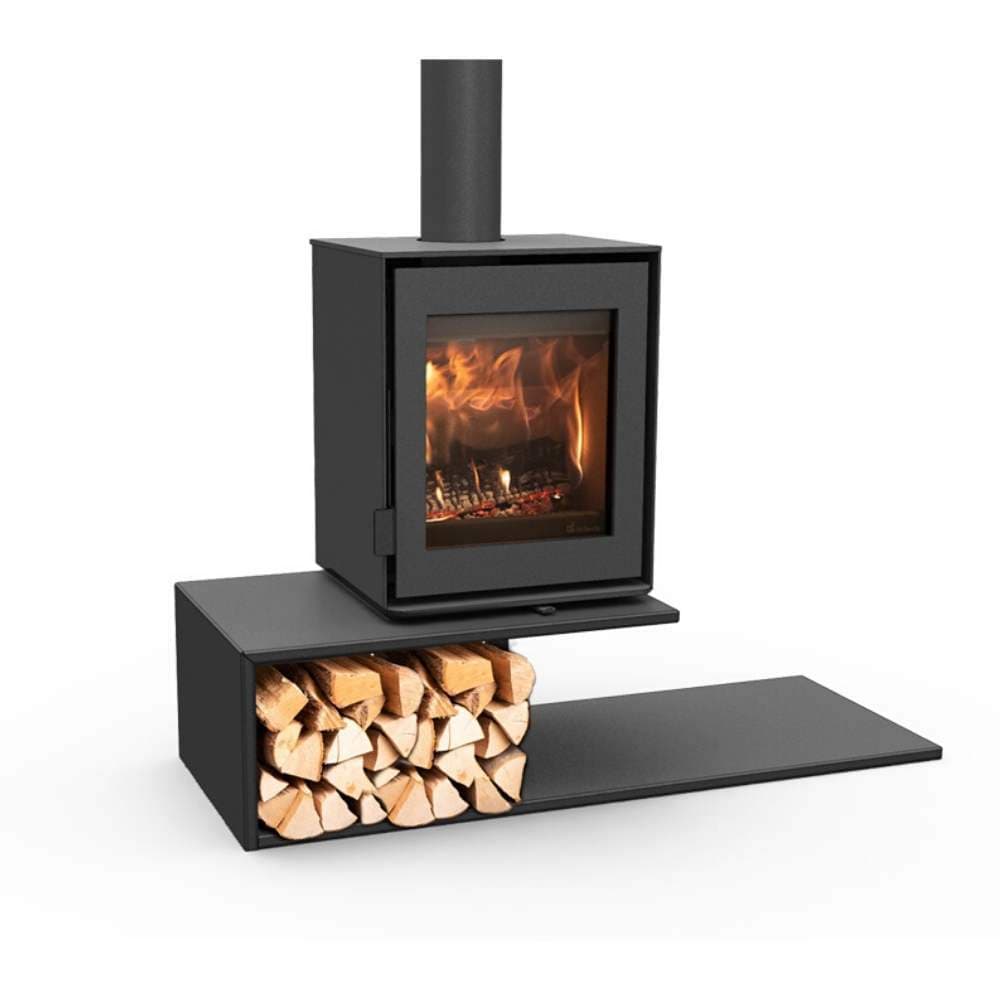

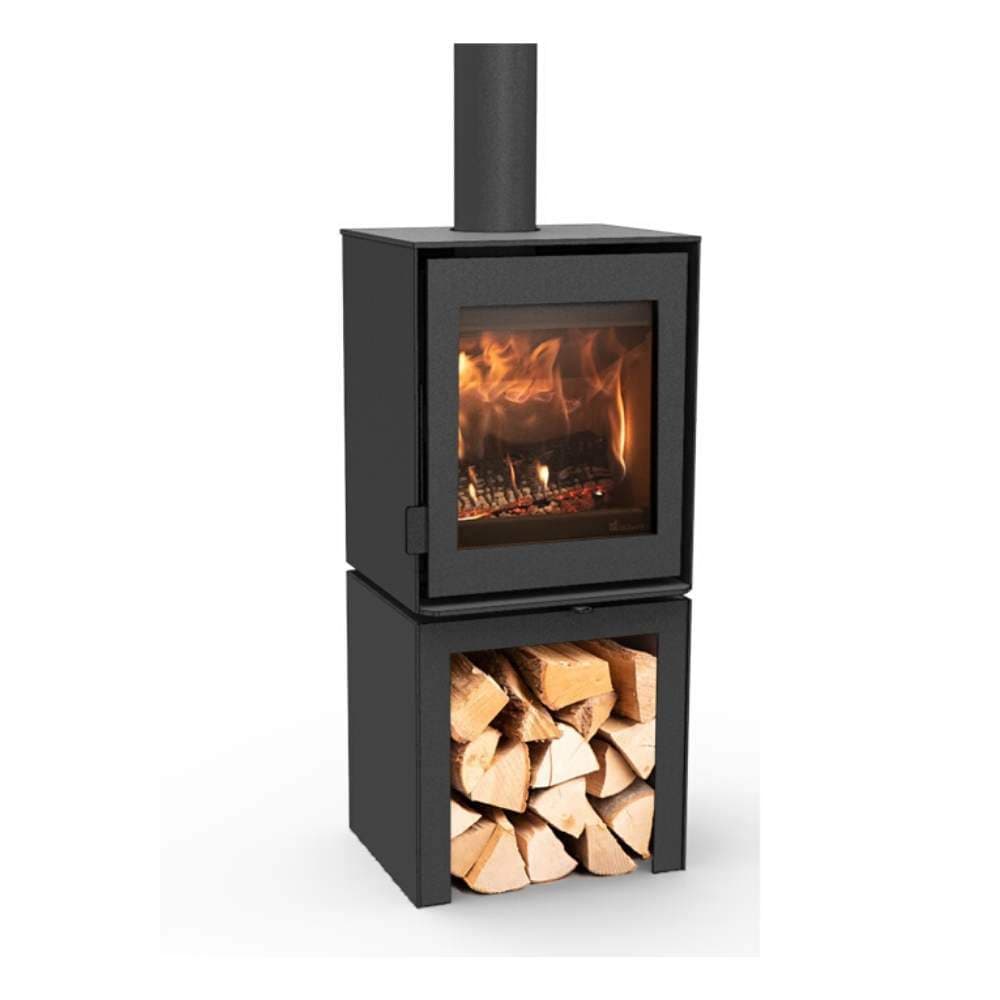

Log store

Need somewhere to store those logs? Choose the "Store" or "Plateau" version of this stove.

Specifications

Output & Fuel

Wood only
Nominal 5kW. Max. 6kW

This stove will run happily at 2kW - 6kW depending on fuel load. Note that running the stove at a higher fuel level than that specified in the manufacturer's manual may cause degradation of stove innards (firebricks, baffle etc.) although these are replaceable (and repairable with beige fire cement).

What size stove do I need?


Eco Credentials

This stove meets and exceeds the new 2022 Ecodesign regulations

This stove is approved by DEFRA to burn wood in a Smoke Control Area


Efficiency

82% (as a rough guide 82% of heat goes to the room with 18% going up the chimney).

Don't overthink efficiency. 75%-85% is fine and90%+ efficiency may not work so well on shorter or difficult chimneys.


External Air

Yes, this stove can be fitted with an external air kit (draws air from outside via pipe direct to stove). Usually this option is not relevant unless a room air-vent is required and the property is airtight (by design or choice).

Please contact us for further advice.

Air vent advice here


Body & Door

Steel stove (5-year body guarantee) with steel door

What to buy steel or cast-iron? Do not overthink. Steel heats fast. Cast-iron takes a little longer but retains heat longer as fire dies.


Hearth

Hearth thickness: minimum 12mm non-combustible material (can include floor thickness).

Hearth regulation advice here

Dimensions

Dimensions

Height: 557mm
Width: 450mm
Depth: 368mm
Front of pipe to rear of stove: 200mm

Flue outlet: 5" (125mm)

Which fitting pack for my liner? A fitting pack includes all you need except liner and chimney closure plate (also sometimes known as register plate)? Advice here


Glass

Viewing area (from outside stove looking in)

Width: 310mm
Height: 355mm


Flue

5" (125mm) collar top or rear (can be installed with a 5" or 6" chimney liner)

Top or rear connection


Air Gaps

Distance to combustibles SIDE: 400mm
Distance to combustibles REAR: 330mm

To non-combustibles there are no hard rules but, around the stove, a 50mm minimum air gap is recommended to brick/stone. This to be increased to 100mm for rendered or boarded surfaces. Prior to purchasing any stove download the installation manual to check that manufacturers do not have any additional requirements.

Distances & heat shield advice


Log Length

Max Log Length: 250mm

Delivery Promise

We offer 14 days from delivery to report any courier damage to your stove. If a stove is damaged by the courier we will replace or refund as desired.

Already have a chimney? You need 1. Stove 2. Liner 3. Fitting Pack 4. Chimney closure plate (Hardiebacker board from Builder's merchants or galvanised sheet).That's it!
No chimney? Check out our shed kits or let us design your clip-together chimney design - easy peasy.
