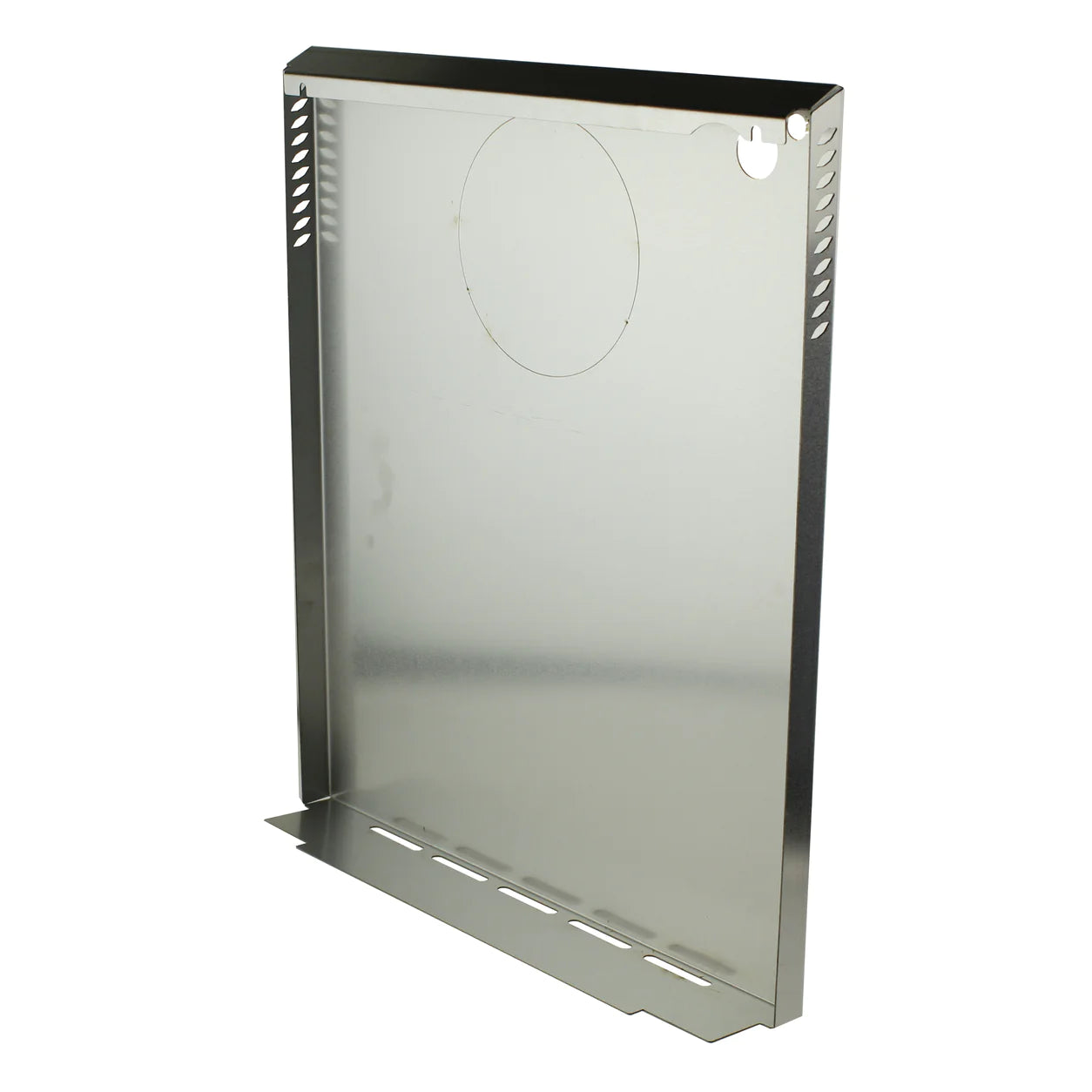

Rear heat shield for Hamlet stoves when needing to position nearer to combustibles. Must be fitted prior to stove installation. More info here

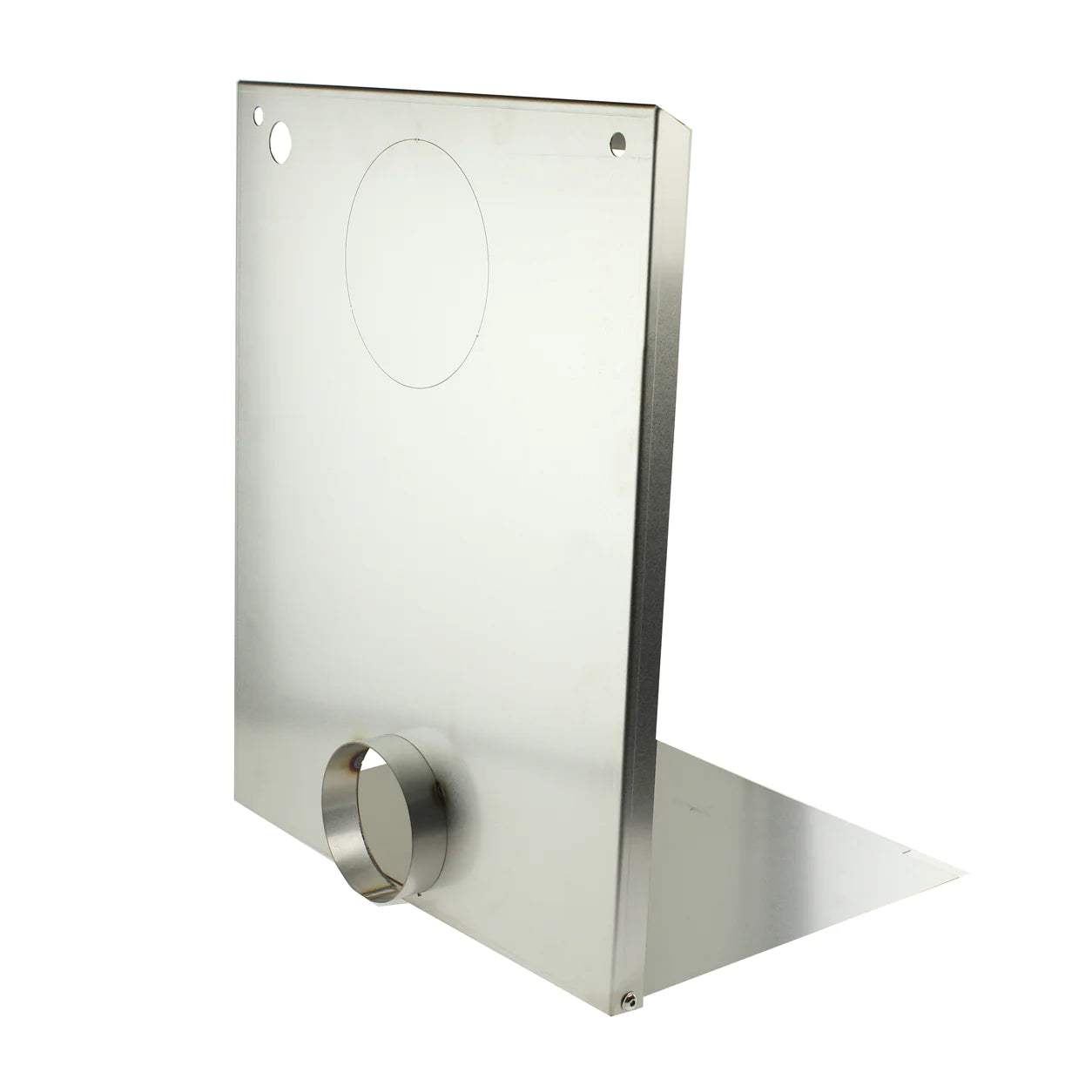

Heat shield with external direct air capability also available. More info here
Solution 4
Distance to combustibles at rear with NO heat shield 65cm
Distance to combustibles at rear WITH heat shield 37.5cm (22.5cm if twin wall all way to stove)
Solution 5 Compact
Distance to combustibles at rear with NO heat shield 70cm
Distance to combustibles at rear WITH heat shield 40cm (25cm if twin wall all way to stove)
Solution 5
Distance to combustibles at rear with NO heat shield 75cm
Distance to combustibles at rear WITH heat shield 50cm (35cm if twin wall all way to stove)
Solution 7
Distance to combustibles at rear with NO heat shield 65cm
Distance to combustibles at rear WITH heat shield 50cm (35cm if twin wall all way to stove)
