The definitive guiding to choosing and installing a wood burning or multifuel stove

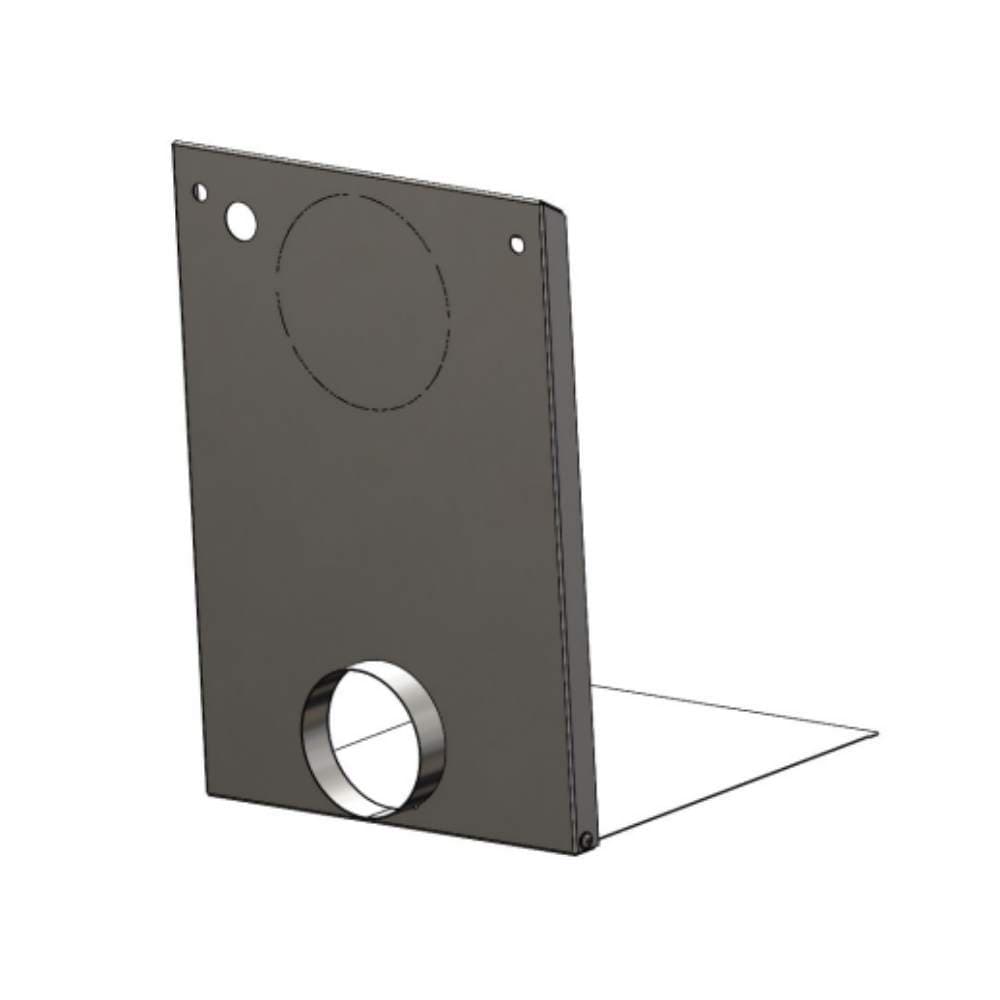

This is a heat shield that also allows direct air to be piped to the stove (direct air only usually relevant in wanting to reduce the amount of air drawn into a property). More info here
Shield without optional air also available.
Solution 4
Distance to combustibles at rear with NO heat shield 65cm
Distance to combustibles at rear WITH heat shield 37.5cm (22.5cm if twin wall all way to stove)
Solution 5 Compact
Distance to combustibles at rear with NO heat shield 70cm
Distance to combustibles at rear WITH heat shield 40cm (25cm if twin wall all way to stove)
Solution 5
Distance to combustibles at rear with NO heat shield 75cm
Distance to combustibles at rear WITH heat shield 50cm (35cm if twin wall all way to stove)
Solution 7
Distance to combustibles at rear with NO heat shield 65cm
Distance to combustibles at rear WITH heat shield 50cm (35cm if twin wall all way to stove)
