This stove can burn wood in a Smoke Control Area (most towns and cities are Smoke Control Areas).
This stove can burn wood in a Smoke Control Area (most towns and cities are Smoke Control Areas).
This stove can burn wood in a Smoke Control Area (most towns and cities are Smoke Control Areas)
This stove is certified as Ecodesign compliant (has passed the new and stringent 2022 regulations).
This stove is certified as Ecodesign compliant (has passed the new and stringent 2022 regulations)
Material: Steel body with a steel door
Output: 8kW
(max approx: 8kW)
Material: Steel body with a steel door
Output: 8kW
(max approx: 8kW)
Body
Width: 606mm
Height: 606mm
Depth: 380mm
Flue
6" (150mm)
Body
Width: 606mm
Height: 606mm
Depth: 380mm
Flue
6" (150mm)
Unique circular design
Dark anthracite exterior with matching internal vermiculite panels
Amazing attention to detail
Unique circular design
Dark anthracite exterior with matching internal vermiculite panels
Amazing attention to detail
Beautiful and unique. On my wishlist.
Odin, the supreme God of Norse mythology.
And a stove by Dik Geurts.
Simply stunning.

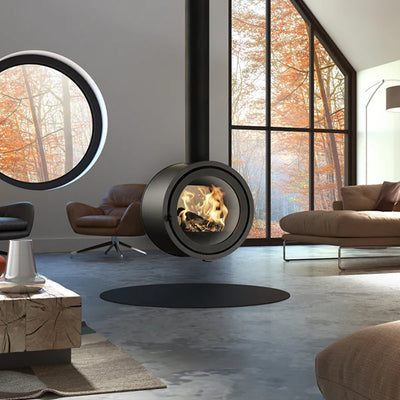

The flagship stove from DG the Odin's circular design certainly makes a statement. The quality is apparent throughout the design: a dark anthracite exterior with matching internal vermiculite panels, sturdy door hinges, single control and external-air-intake compatible.
104cm (central stove) £695
160cm (offset stove) £722
Custom size £1368
Contact us for further details.

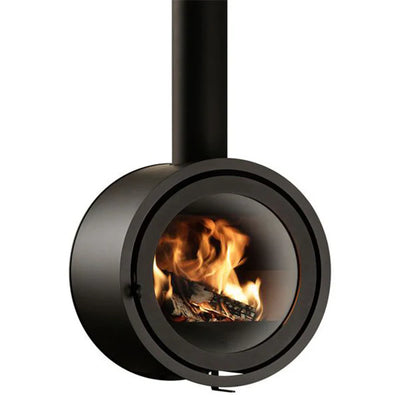

Wall-mounting kit £242

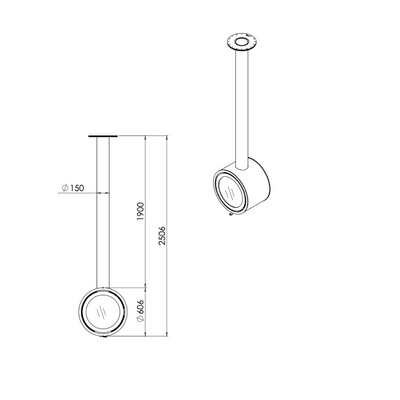

Roof-suspension system £665
Contact us for further details.
One single control that automatically adjusts primary and secondary air whilst simultaneously adding the perfect amount of glass-cleansing air-wash.
Vermiculite cast panels help to reduce emissions and increase efficiency.
Wood only.
Nominal 8kW. Max. 8kW
This stove will run happily at 3kW - 8kW depending on fuel load. Note that running the stove at a higher fuel level than that specified in the manufacturer's manual may cause degradation of stove innards (firebricks, baffle etc.) although these are replaceable (and repairable with beige fire cement).
This stove meets and exceeds the new 2022 Ecodesign regulations
This stove is approved by DEFRA to burn wood in a Smoke Control Area
75.2% (as a rough guide 75.2% of heat goes to the room with 14.8% going up the chimney).
Don't overthink efficiency. 75%-85% is fine and90%+ efficiency may not work so well on shorter or difficult chimneys.
Yes, this stove can be fitted with an external air kit (draws air from outside via pipe direct to stove). Usually this option is not relevant unless a room air-vent is required and the property is airtight (by design or choice).
See "Customers Also Bought".
Steel stove (5-year body guarantee) with steel door
What to buy steel or cast-iron? Do not overthink. Steel heats fast. Cast-iron takes a little longer but retains heat longer as fire dies.
Hearth thickness: minimum 125mm non-combustible material (can include floor thickness).
This stove can, if outside of a fireplace recess, be sited on a 12mm thick hearth.
Height: 606mm
Width: 606mm
Depth: 380mm
Flue outlet: 6" (150mm)
Which fitting pack for my liner? A fitting pack includes all you need except liner and chimney closure plate (also sometimes known as register plate)? Advice here
Viewing area (from outside stove looking in)
Width: 424mm
Height: 424mm
6" (150mm) collar top or rear (can be installed with a 6" chimney liner)
Top or rear connection
Distance to combustibles please read stoves' install manual.
To non-combustibles there are no hard rules but, around the stove, a 50mm minimum air gap is recommended to brick/stone. This to be increased to 100mm for rendered or boarded surfaces. Prior to purchasing any stove download the installation manual to check that manufacturers do not have any additional requirements.
Max log length: 330mm
We offer 14 days from delivery to report any courier damage to your stove. If a stove is damaged by the courier we will replace or refund as desired.
Already have a chimney? You need 1. Stove 2. Liner 3. Fitting Pack 4. Chimney closure plate (Hardiebacker board from Builder's merchants or galvanised sheet).That's it!
No chimney? Check out our shed kits or let us design your clip-together chimney design - easy peasy.
