This stove can burn wood in a Smoke Control Area (most towns and cities are Smoke Control Areas).
This stove can burn wood in a Smoke Control Area (most towns and cities are Smoke Control Areas)
This stove is certified as Ecodesign compliant (has passed the new and stringent 2022 regulations).
Material: Steel with a steel door
Output: 4kW
(max approx: 4kW)
Material: Cast-iron
Output: 4kW
(max approx: 4kW)
Body
Width: 300mm
Height: 460mm
Depth: 270mm
Flue
4" (100mm)
Body
Width: 300mm
Height: 460mm
Depth: 270mm
Flue
4" (100mm)
Top seller
Small stove for small rooms
Cast-iron classic
Favourite amongst Stovefitter's customers
Top seller
Small stove for small rooms
Cast-iron classic
Top seller. Great little stove and never any quality problems. Very well crated for the journey. Fall in love with a hot little Hobbit.
Other small stoves: Saltfire Peanut 3, Ekol Applepie
Top seller. Great little stove and never any quality problems. Very well crafted for the journey.
Other small stoves: Saltfire Peanut 3, Ekol Applepie
Options available:
Log store - fits under stove (see "Customers Also Bought").
Coal bar - raises the height at which coal/logs can fall out (see "Customers Also Bought").
Brass fittings - brass metalwork instead of silver (choose "Model" just above "Add to Cart").
Back boiler - factory-fitted option for heating small radiators approx. £225 extra. See Salamander website for more info.
Need colours? Contact us for a quote :-)
In fact - just let us know exactly what you require and we'll sort a quote - and we'll beat Salamander on price :-)
3-metre chimney kit: everything you need in one handy pack.
Free chimney design service also available.
Multifuel (can burn wood and smokeless fuel/coal)
Nominal 4kW.
Max. 3.4kW - 4kW
This stove will run happily at 1kW - 4kW depending on fuel load. Note that running the stove at a higher fuel level than that specified in the manufacturer's manual may cause degradation of stove innards (firebricks, baffle etc.) although these are replaceable (and repairable with beige fire cement).
This stove is approved by DEFRA to burn wood in a Smoke Control Area
75% (as a rough guide 75% of heat goes to the room with 25% going up the chimney).
Don't overthink efficiency. 75%-85% is fine and90%+ efficiency may not work so well on shorter or difficult chimneys.
Yes, this stove can be fitted with an external air kit (draws air from outside via pipe direct to stove). Usually this option is not relevant unless a room air-vent is required and the property is airtight (by design or choice).
This is a factory-fitted option and a special order (approx. £250 extra). Please contact us for delivery timescales.

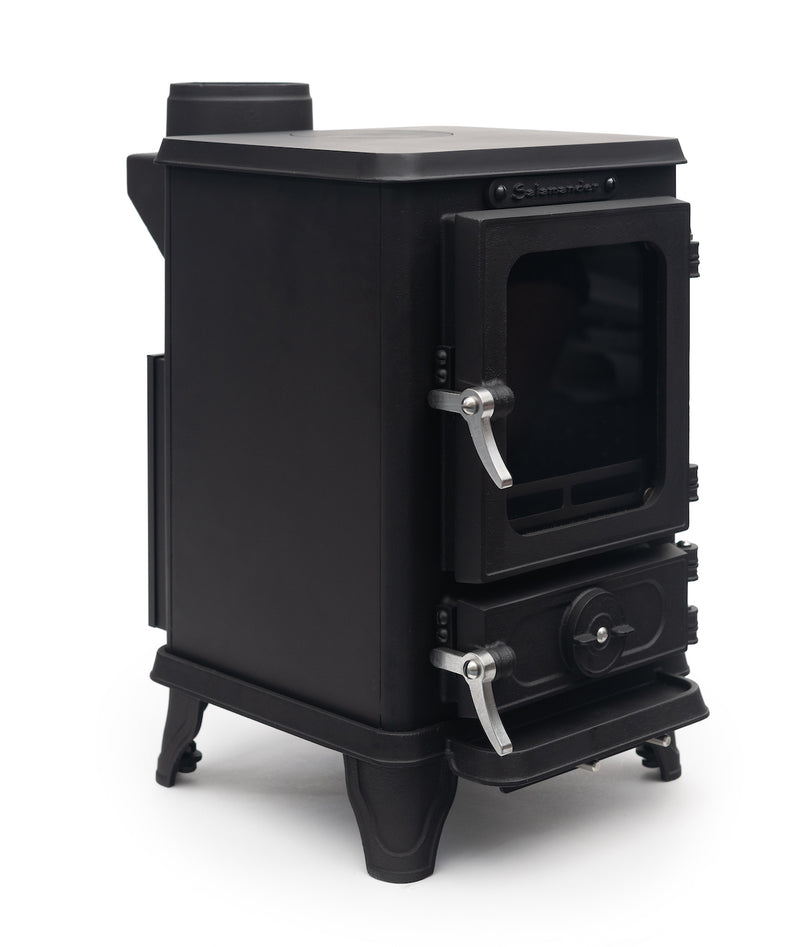

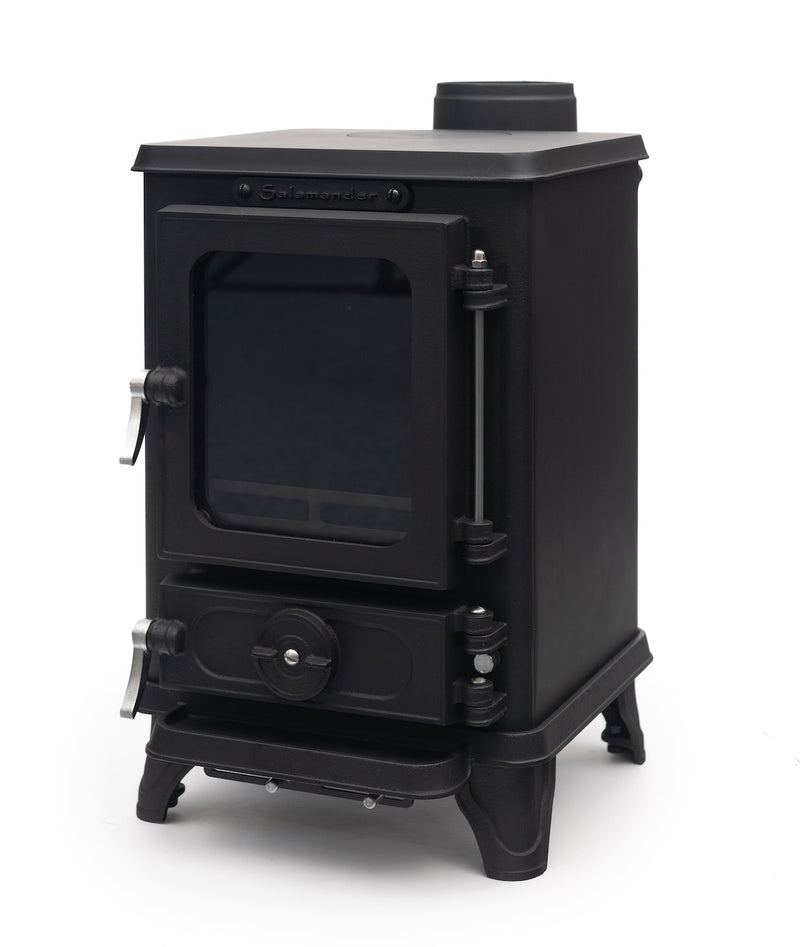

Cast-iron stove (5-year body guarantee) with cast-iron door.
What to buy steel or cast-iron? Do not overthink. Steel heats fast. Cast-iron takes a little longer but retains heat longer as fire dies.
Hearth thickness: minimum 12mm non-combustible material (can include floor thickness).

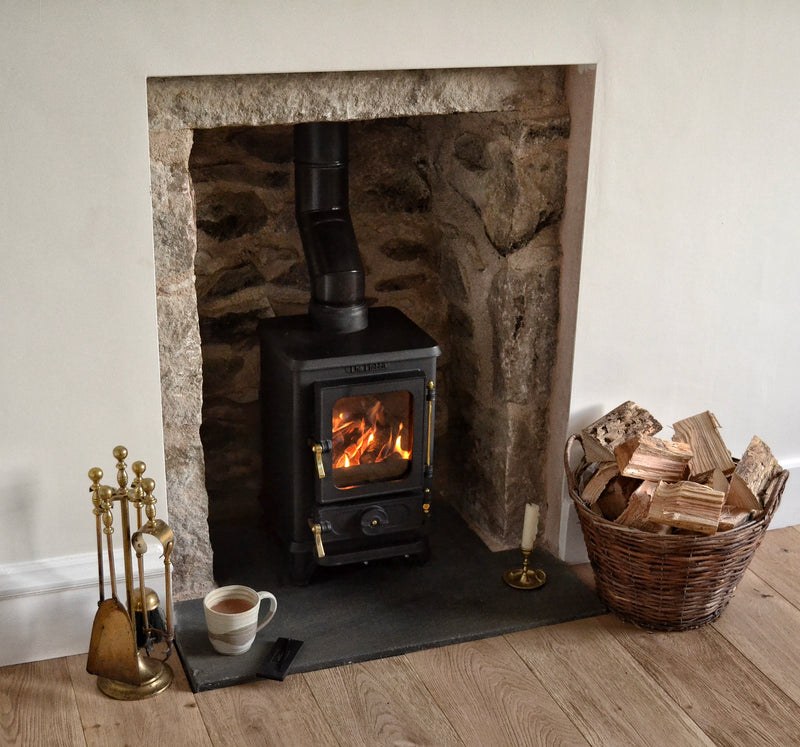

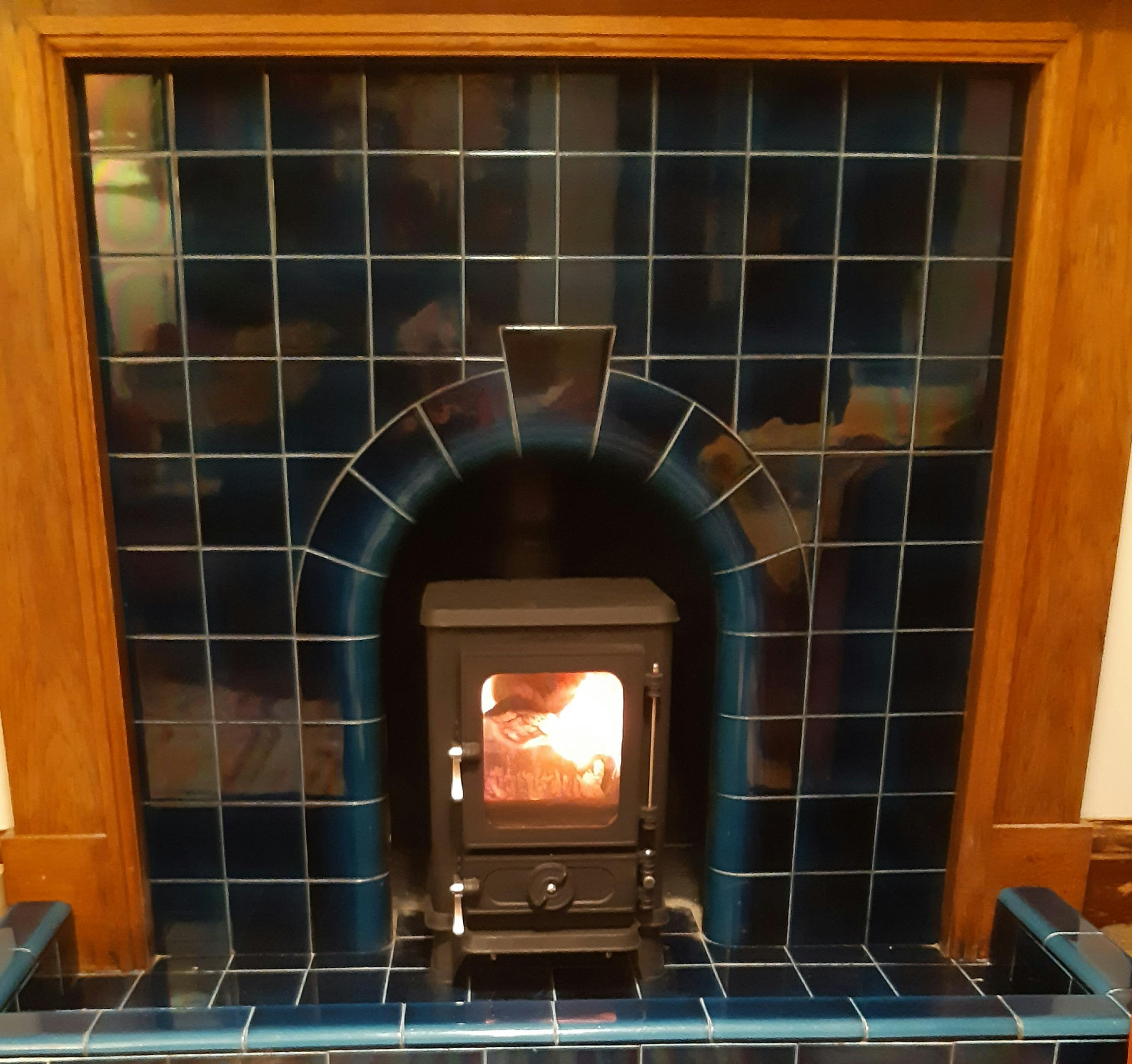

If in a fireplace recess, a full 125mm thickness constructional hearth is required. This will usually be in place as part of the recess design.
Height: 460mm
Height with log store: 618mm
Width: 300mm
Depth: 270mm

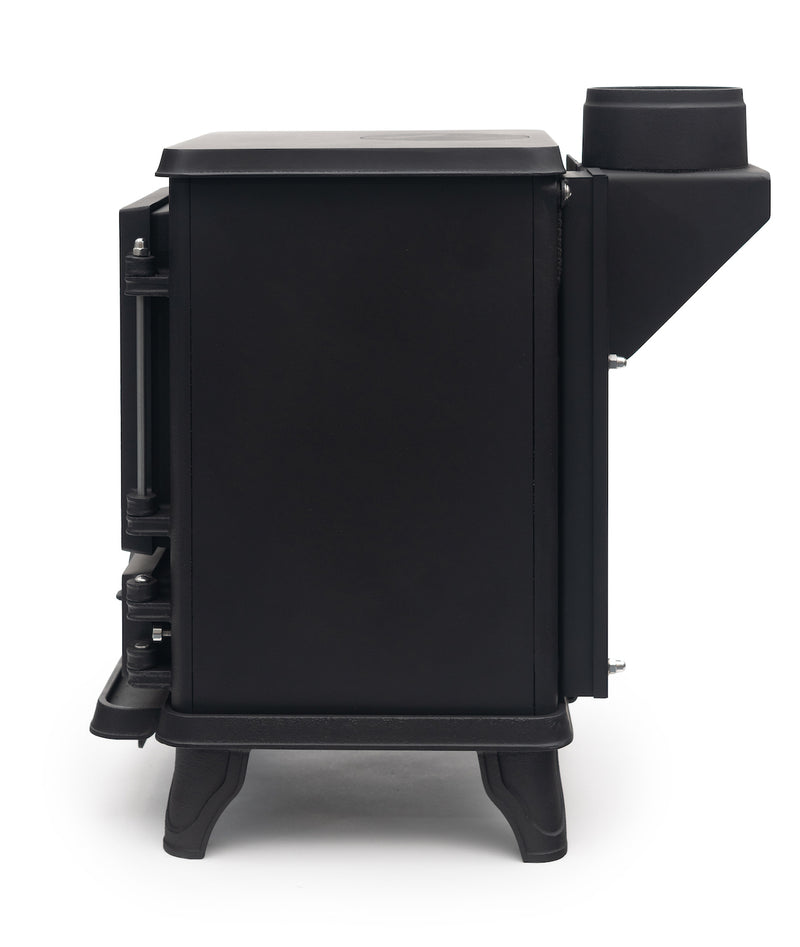

Front of pipe to rear of stove: 170mm
Flue outlet: 4" (100mm)
Which fitting pack for my liner? A fitting pack includes all you need except liner and chimney closure plate (also sometimes known as register plate)? Advice here
Viewing area (from outside stove looking in)
Width: 150mm
Height: 180mm
4" (100mm) collar top or rear. Can be installed with a 5" chimney liner on the DEFRA version of this stove, otherwise choose 6". Can be installed with a 5" twin wall chimney on the DEFRA version of this stove, otherwise choose 6".
We recommend using a 4" to 5" vitreous adaptor and using 5" vitreous pipe). If using twin wall flue pipe (insulated) and wish to take the twin wall all the way to the stove then use a 4-5" twin wall adaptor.

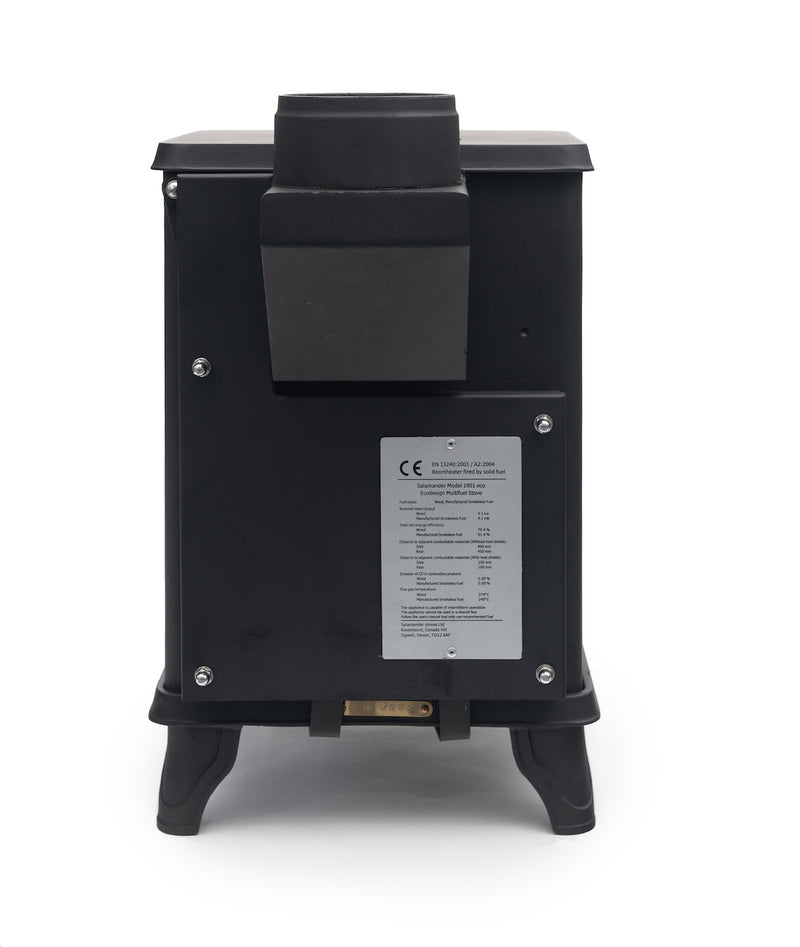

Top or rear connection
Distance to combustibles SIDE: 400mm
Distance to combustibles REAR: 400mm (200mm with heatshield)
To non-combustibles there are no hard rules but, around the stove, a 50mm minimum air gap is recommended to brick/stone. This to be increased to 100mm for rendered or boarded surfaces. Prior to purchasing any stove download the installation manual to check that manufacturers do not have any additional requirements.
Max log length: 200mm
We offer 14 days from delivery to report any courier damage to your stove. If a stove is damaged by the courier we will replace or refund as desired.
Already have a chimney? You need 1. Stove 2. Liner 3. Fitting Pack 4. Chimney closure plate (Hardiebacker board from Builder's merchants or galvanised sheet).That's it!
No chimney? Check out our shed kits or let us design your clip-together chimney design - easy peasy.
